MP-DVFB-4K

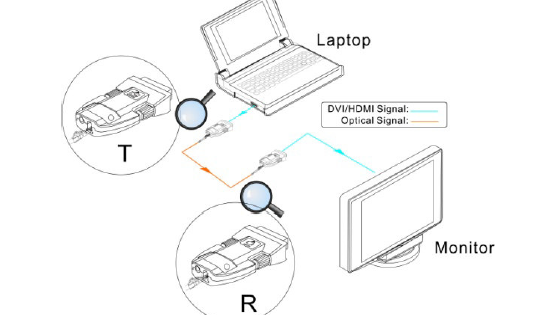

MP-DVFB-4K is a mini DVI optical fiber extender for 4K resolution. It contains a transmitter and a receiver Compatible with HDMI1.4, it transmits high-definition DVI/HDMI (max [email protected]) up to 300m/ 1km over qualified OM3 multi-mode/ single mode cable. It also offers manual EDID management to ensure reliable AV distribution.

  • Bandwidth up to 10.2Gbps.
  • Support HDMI 1.4, 4Kx2K & 1080p 3D.
  • 984ft(300m) transmission over multi-mode fibre, 0.62mi (1Km) over single-mode fibre.
  • Manual EDID management.
  Transmitter Receiver
Input
Input Signal (1) DVI (1) Optical Fibre
Input Connector FemaleDVI-D LC connector
Signal Digital AV signal, compliant with HDMI1.4 Optical Fiber
Output
Output (1) Optical Fiber (1) HDMI
Output Connector LC connector FemaleDVI-D
Signal Optical Fiber Digital AV signal, compliant with HDMI1.4
General
Resolution

[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected], [email protected], [email protected],
[email protected]

Audio Format PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard HDMI1.4
Transmission Distance ≤1km via single mode fiber
≤300m via OM3 multimode fiber
Temperature 0 ~ 50℃
Reference Humidity 10% ~ 90%
Power Supply Input: AC 100~240V, 50/60Hz; Output: DC 5V 1A
Power Consumption ≤4.35w
Dimension (W*H*D) 69.5*10.2*40 mm 69.5*10.2*40 mm
Weight 63g 63g
