MPHT-4T-H2 KIT

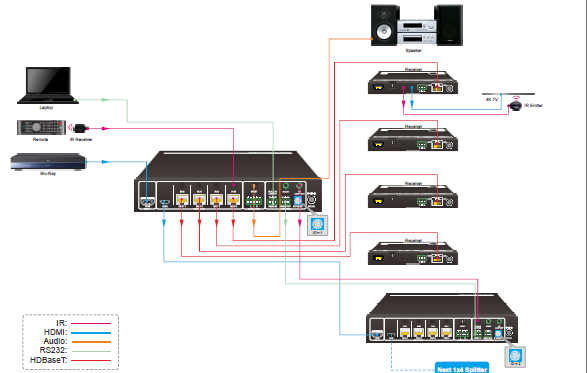

MPHT-4T-H2 KIT iS a 1x4 HDBaseT Splitter Kit. It accepts a single HDMI input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed with an IR loop out and loop in which are intended to cascade to additional units. It supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats. It can extend 1080p signals on each output to distance up to 229 feet (70 meters) and 4K signals to distance up to 131 feet (40 meters) over a single CATx Ethernet cable. It supports the Power over HDBaseT (PoC) feature, which allows the receivers to be powered from the splitter over the Ethernet cables. It supports bidirectional IR pass-through and IR, RS232 cascade control.
Features
- Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4.
- Distribute one UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI output.
- Supports cascade connection, distribute video signal to multiple video displays.
- Maximum transmission distance is up to 40m for 4K, and 70m for 1080p.
- Supports video resolution down-scaling, 4K input can be automatically downgraded to 1080 output.
- Supports audio de-embedding.
- Each HDBaseT output supports IR pass-through.
- Support RS232 and IR cascade control.
- Support 24V PoC, the HDBaseT receiver can be powered by HDBaseT splitter.
|
Video Input |
|
|
Input |
(1) HDMI |
|
Input Connector |
(1) Female type A HDMI |
|
HDMI Input Resolution |
Up to 4K@60Hz 4:4:4 8bit |
|
Video Output |
|
|
Output |
(1) HDMI, (4) HDBT |
|
Output Connector |
(1) Female type A HDMI; (4) RJ45 |
|
HDMI Output Resolution |
Up to 4K@60Hz 4:4:4 |
|
HDBT Output Resolution |
Up to 4K@60Hz 4:4:4 (Signal has been compressed.) |
|
SPDIF Audio Output |
|
|
Audio Output |
(1) SPDIF |
|
Audio Output Connector |
(1) Toslink |
|
Audio Format |
LPCM 2ch, Dolby Digital 2ch, 5.1ch, 7.1ch, Dolby TureHD 7.1ch, DTS 2ch, 5.1ch |
|
Output Level |
±0.05dBFS |
|
Frequency Response |
20Hz ~20kHz, ±1dB |
|
THD+N |
< 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
|
SNR |
> 90dB, 20Hz ~20kHz bandwidth |
|
Crosstalk Isolation |
> 70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
|
Noise |
-90dB |
|
Stereo Balanced L/R Audio Output |
|
|
Audio Output |
(1) Stereo balanced L/R audio |
|
Audio Output Connector |
(1) 5-pin terminal block |
|
Audio Format |
PCM |
|
Frequency Response |
20Hz ~20kHz, ±1dB |
|
Max output level |
2.0Vrms ± 0.5dB. |
|
THD+N |
< 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
|
SNR |
> 80dB, 20Hz ~20kHz bandwidth |
|
Crosstalk Isolation |
> 70 dB, 10kHz sine at 0dBFS level (or max level before clipping) |
|
L-R Level Deviation |
< 0.3 dB, 1kHz sine at 0dBFS level (or max level before clipping) |
|
Output Load Capability |
1kohm and higher (supports 10x paralleled 10kohm loads) |
|
Noise |
-80dB |
|
Control |
|
|
Control Port |
(1) EDID, (1) FIRMWARE, (1) ID PRESET, (1) IR ALL IN/LOOP IN, |
|
Control Connector |
(1) 4-pin DIP switch, (1) Micro-USB, (1) DIP switch, (7) 3.5mm mini |
|
General |
|
|
HDMI Standard |
2.0 |
|
HDCP Version |
2.2 |
|
Transmission Mode |
HDBaseT |
|
Transmission Distance |
1080p ≤ 229 feet (70 meters), 4K ≤ 131 feet (40 meters) |
|
Operation Temperature |
-10 ~ +55℃ |
|
Storage Temperature |
-25~ +70℃ |
|
Relative Humidity |
10% ~ 90% |
|
AC Adapter Input Power |
100V~240V AC, 50/60Hz |
|
Input Power |
24V DC 5A |
|
Power Consumption |
47W (Max) |
|
Dimension (W*H*D) |
250mm x 44mm x 148mm |
|
Net Weight |
1.16Kg |
