MPTP-T101-US

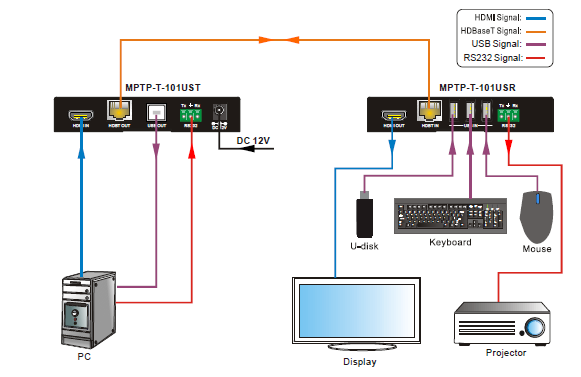

MPTP-T-101US is a 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoC over a single CAT5e/6 cable. The unidirectional PoC compliant extender comes with only one power supply, which means that the Receiver can be powered via Transmitter to save installers time and added cost to installing a power outlet. Ideally designed for smart displays and KVM solutions fitting digital signage markets.
- Compatible with HDMI2.0 and is backwards compatible with all previous HDMI standards(e.g. HDMI 1.4), delivers high-resolution AV signal(1080p 3D, 4Kx2K@60Hz)
- Support HDBT2.0, transmit 4Kx2K signal up to 100m over single CAT6 cable
- EDID Pass-Thru
- HDCP2.2 compliant
- Front panel status LEDs for power, link & HDCP
- USB & RS232 control
- Unidirectional PoC (Power over HDBaseT)
| MPTP-T101-UST | MPTP-T101-USR | |
| Audio & Video | ||
| Input | 1 x HDMI (19 pin Type-A male) | 1 x HDBT (RJ45 female) 3 x USB IN (Type-A) |
| Output | 1 x HDBT (RJ45 female) 1 x USB OUT (Type-B) |
1 x HDMI (19 pin Type-A male) |
| Other | 1 x RS232 (3-pin pluggable terminal block) | 1 RS232 (3-pin pluggable terminal block) |
| Signal Standard | HDMI2.0 & HDCP2.2 | HDMI2.0 & HDCP2.2 |
| Transmission Mode |
HDBaseT 2.0 | |
| HDMI Embedded Audio |
PCM/Dolby Digital/DTS/DTS-HD | |
| General | ||
| EDID Management | EDID Pass-Thru | |
| Transmission Distance | 4Kx2K≤100m(Cat6) | |
| Temperature | -10~ 55℃ | |
| Reference Humidity | 10% ~ 90% | |
| Power Supply | Input:100V~240V AC; Output: DC 12V 2A | |
| Power Consumption | 18W(max) | |
| Dimension (W*H*D) (mm) | 116 x 22 x 95(mm) | 116 x 22 x 95(mm) |
| Net weight | 197g | 198g |
