MPTP-TUC-100KVM

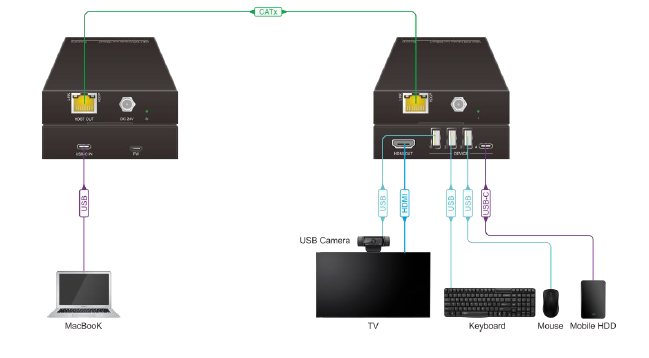

MPTP-TUC-100KVM is an USB-C KVM Extender Kit that allows one USB channel to be transmitted over distances of up to 328ft(100m) at 4K@60Hz/1080p@60Hz via CATx cable. This KVM Extender Kit includes one transmitter and one receiver. The transmitter features one USB-C input and one HDBT output. For the USB-C input, it provides an AV ideal interface for connecting to the Macbook or other device with SlimPort output. The receiver features one HDMI output, one HDBT input and 4 USB 2.0 ports for connecting with KVM device such as camera, keyboard and mouse.

  • Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.
  • USB-C input supports 4K@60Hz 4:4:4.
  • Supports to transmit 4K/1080p signal up to 328ft(100m).
  • Supports bi-direction 24V PoC power supply.
  • 4 USB 2.0 ports for connecting with KVM device.
  • Micro-USB for firmware upgrade

Powered by Froala Editor

 TransmitterReceiver
Video
Input1 x USB-C IN1 x HDBT IN
Input Connector1 x Type-C1 x  RJ45
Input ResolutionUp to 4K@60Hz 4:4:4Up to 4K@60Hz 4:4:4
Output1 x HDBT OUT1 x HDBT OUT
Output Connector1 x RJ451 x Type-A female HDMI
Output ResolutionUp to 4K@60Hz 4:4:4Up to 4K@60Hz 4:4:4
Control
Control Port4 x DEVICE
Control Connector2 x Type-A USB 2.0 5V500mA Power Supply
1 x Type-A USB 2.0 5V1A Power Supply
1 x Type-C USB 2.0 5V1A Power Supply
General
HDCP Version

Input: HDCP 2.2, HDCP 1.4 compliant

Output:

RX OUT ->

TX IN

HDCP2.2HDCP1.4NO HDCP
HDCP 2.2HDCP2.2NO IMAGENO IMAGE
HDCP 1.4HDCP2.2HDCP 1.4NO IMAGE
NO HDCPNO HDCPNO HDCPNO HDCP
PoCSupported bi-directional 24V PoC
HDMI V2.0 Cable Length4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m
Transmission Distance4K/1080p ≤ 328 feet (100 meters)
Operation Temperature-5 to +55℃(+23° to +131°F)
Storage Temperature-25 to +70℃(-13° to +158°F)
Relative Humidity10% to 90%, Non-condensing
Power SupplyInput:100V~240V AC; Output:24V DC 1.25A
Power Consumption18.2 W
Dimension (W*H*D)90 x 21.7 x 120 mm90 x 21.7 x 120 mm
Net Weight260g265g
