MP-HM1

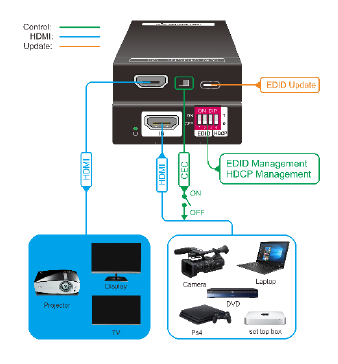

The MP-HM1 is a 18G HDMI manager with EDID & HDCP manage. It supports up to 4K@60 4:4:4 and HDCP2.2. The product is power by HDMI or USB-C, and it contains CEC block switch and support auto-downscaling
- 18G HDMI 2.0 4K@60 444 HDCP2.2;
- Supports EDID & HDCP manage;
- Power by HDMI or USB-C;
- CEC block switch.
| Video Input | |
| Input | (1) HDMI 2.0 |
| Input Connector | (1) Female type-A |
| HDMI Input Resolution | Up to 4K@60 4:4:4 |
| Video Output | |
| Output | (1) HDMI 2.0 |
| Output Connector | (1) Female type-A |
| HDMI Output Resolution | Up to 4K@60 4:4:4 |
| General | |
| Bandwidth | 18Gbps |
| Power Supply | 5V 1A |
| Power Consumption | 2.4W(MAX) |
| Dimension (W*H*D) | 54x18x60mm |
| Net Weight | 85g |
