MP-IPM3000

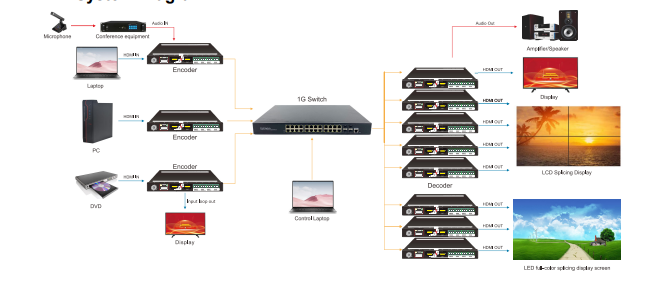

The 4K Encoding and Decoding Integrated IP Matrix integrates advanced video compression, network, visualization, and centralized control technologies. It builds an IP-based system combining video splicing, KVM management, audio processing, and encoding/decoding with distributed, visualized, and server-less features. SupportingHDMI 4K@60Hz input/output, multi-screen splicing, and IR, I/Oand RS-232control, ensures synchronization, real-time performance, and vivid color reproduction. This cost-effective solution simplifies wiring and offers visual control and decentralized operation for HD/1080p applications. Ideal for conference centers, exhibition halls, command centers, and transportation hubs.
Features
- Integrated Encoder and Decoder: Combines encoder and decoder functionsinoneunit with a DIP switch to change the mode.
- Support for H.264 and H.265 Protocols: Compatible with H.264 and H.265encoding and decoding protocols.
- High Resolution Support: HDMI interface supports up to 3840x2160@60Hzforinput and output.
- Multiple Controlling Method: I/O, IR, RS-232
- Seamless Switching
- Visualization Operation
- Ultra-thin Design: The height is only 16mm
- Multi-channel Decoding: Supports at least 4 images displayed in a single screen.
Powered by Froala Editor
Specifications
| Video Input | 1x HDMI IN (Type-A Female Port), up to 3840x2160@60Hz |
| Digital Audio Input | 1x HDMI IN (Type-A Female Port) |
| Analog Audio Input | 1x 3-Pin Terminal Block |
| Video Output | 1x RJ45 for IP Stream Output\ 1x HDMI Loopout (Type-A Female Port) |
| Encoding Performance | 3840x2160@60Hz x1 |
| Video Input | 1x RJ-45 (1000Mbps) for IP StreamInput |
| Digital Audio Output | 1x HDMI (Type-A Female port) |
| Analog Audio Output | 1x 3-Pin Terminal Block |
| Decoding Performance | 3840x2160@60Hz x1, or 1920x1080@60Hzx4, or 1920x1080@30Hz x6, or D1@30Hz x6PAL Standard: D1 will be 720x576 NTSC Standard: D1 will be 720x480 |
| Control Connector | 1 x 3-Pin Terminal Block for I/O or IR1 x 3-Pin Terminal Block for RS-232 |
| Codec | H.264, H.265 |
| Communication Protocols | TCP/IP, UDP |
| Bit Depth | 8-bit, 4:2:0 |
| Latency | Less than 150ms |
| Operation Temperature | 0℃ ~ +50℃ |
| Storage Temperature | 10℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power | DC 12V/2A, or PoE |
| Power Consumption | 10W |
| Dimension (W x H x D) | 152mm x 16mm x 104mm |
| Net Weight | 308g |
