MP-EXT-1

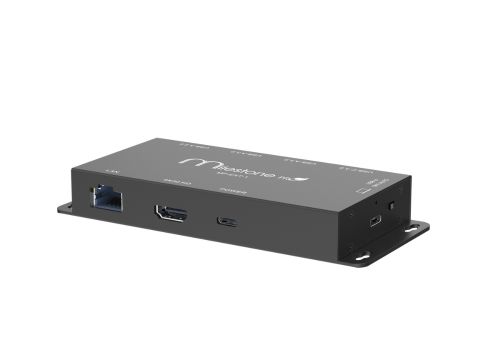

MP-EXT-1 is designed to be attached under the meeting desk and support all connections for a conference room. Simply connect a USB-C cable to your laptop, and the laptop will be charged. Connection gives full access to the USB devices in the room and delivers 4K video plus sound via the HDMI output. The LAN port gives a cabled network connection to the laptop.
Features
- Supports HDMI 1.4, 4K@30Hz 4:4:4.
- USB-C input supports 100W power delivery.
- Supports USB3.2 Gen2 data transfer via USB-C.
- 2 USB3.2 Gen 1 and 1 USB2.0 KVM for camera, keyboard, and mouse.
- Supports USB power management.
- Ethernet Gigabit LAN.
- Plug and Play.
Powered by Froala Editor
| Input | (1) USB |
| Input Connector | (1) USB-C |
| Input Resolution | Up to 4K@60Hz 4:4:4 |
| USB Standard | USB3.2 Gen2, 10Gbps |
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| HDMI Output Resolution | Up to 4K@30Hz 4:4:4 |
| HDMI Standard | 1.4 |
| Connector | (1) USB-C, (3) USB-A |
| USB Standard | (1) USB-C: USB3.2 Gen 1 (2) USB-A: USB3.2 Gen 1 (1) USB-A: USB2.0 |
