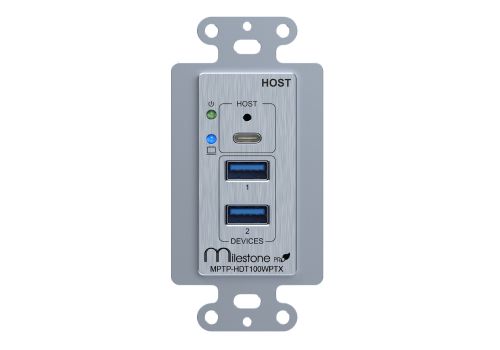

MPTP-HDT100WPTX
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated as of September 20, 2024. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- USB3.2 Gen1 data transmission rate up to 5Gbps
- Supports extending USB signal up to 100m via CAT6a cable
- Support RS232 pass-through and upgrade
- Support DIP switch to switch PoC ON/OFF
- Two-way 24V PoC power supply
Powered by Froala Editor
Specification
| Host Connector | (1) Type-C USB |
| Devices Connector | (2) Type-A USB |
| Devices Power | 5V 500mA total |
| USB Version | USB 5Gbps |
| Control | (1) DIP switch |
| Control Connector | (1)2-pin DIP switch |
| Transmit distance | Up to 100m with CAT6A cable |
| PoC standard | Two-way 24V PoC |
| Data Rate | 5Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10% ~ 90% |
| External Power Supply | DC24V 1.5A |
| Power Consumption | 30W (Max) |
