MPTP-T100SS
MPTP-T100SS is an ultra-thin HDBaseT Extender set consist of transmitter and receiver. It distributes HDMI signal via CAT5e/CAT6a cable at 100m/PoH, and enables IR and RS232 passthrough to control remote displays. It also supports 4 Ethernet interface for network. It provides a perfect long range transmission solution.
Ultra-thin design.
- The highest resolution is 4Kx2k/60Hz
- HDCP2.2 compliant.
- Maximum transmission distance is up to 70m for 4Kx2K
- Maximum transmission distance is up to 100m for 1080p
- Maximum extension distance is up to 100m for Ethernet.
- Support bi-directional PoH
- High bandwidth：10.2Gbps
- Support IR/RS232 passthrough.
- Use HDBaseT technology.
- LED indicators show work status.

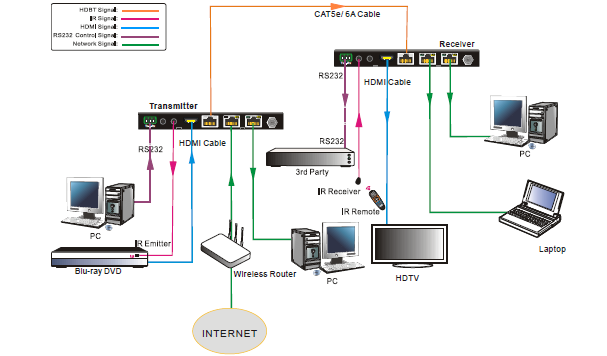

| Transmitter | Receiver | |
| Input | ||
| Input | 1 x HDMI,1 x IR in, 1 x RS232 | 1 x IR in, 1 x HDBaseT, 1 x RS232 |
| Input Connector | 1 x HDMI female 1 x 3.5mm mini jack for IR in 1 x 3P captive connector |
1 x 3.5mm mini jack for IR in 1 x RJ-45 1 x 3P captive connector |
| Video Signal | HDMI1.4 | HDMI1.4 |
| Audio | Digital audio, transmit through HDMI audio | Digital audio, transmit through HDMI audio |
| Output | ||
| Output | 1 x HDBaseT, 1 x IR out, 1 x RS232 | 1 x HDMI, 1 x IR out, 1 x RS232 |
| Output Connector | 1 x RJ-45 1 x 3.5mm mini jack for IR out 1 x 3P captive connector |
1 x HDMI female 1 x 3.5mm mini jack for IR out 1 x 3P captive connector |
| Ethernet Port | ||
| Connector | 2 x Black RJ45, with a dual color indicator (Green & Yellow) | 2 x Black RJ45, with a dual color indicator (Green & Yellow) |
| Ethernet Transmission Speed |
Adaptive 10M/100M (max), full duplex or half duplex. | |
| General | ||
| Transmission Mode | HDBaseT | |
| Resolution | 800x600@60Hz、1024x768@Hz、1280x720@60Hz、1280x1024@60Hz 、1366x768@60Hz、1600x1200@60Hz, 1920x1080@60Hz、1920x1200@60Hz、3D、4K×2K | |
| Transmission Distance | 1080P ≤ 100m; 4K×2K ≤ 70m |
|
| Bandwidth | 10.2Gbps | |
| HDMI Standard | HDMI1.4 & HDCP2.2 | |
| Impedance | 75Ω | |
| Temperature | 0~ 50℃ | |
| Humidity | 0% ~ 90% | |
| Power Consumption | 10W | |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A | |
| Dimension (W*H*D) | 152mmx16.2mmx104mm | 152mmx16.2mmx104mm |
| Net Weight | 235g | 241g |
