MP-A2B

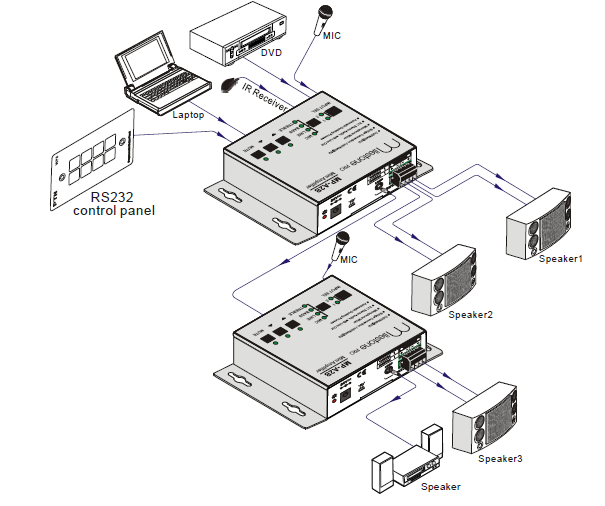

MP-A2B is a compact-size digital amplifier (Class-D) with 3 inputs (2 line in and 1 balanced MIC). It is integrated with powerful functions, including bridge connection, dual-mono, EQ control, microphone mixer etc. It has a good application in different places, including classroom, small meeting room, lecture hall, bar, pub etc.

  • [email protected] as the default amplifier output.
  • Bridge connection function. User can switch the MP-A2B to be [email protected] by bridge connection.
  • Two stereo audio inputs, switchable by button, IR remote & RS232.
  • Volume/Bass/Treble controllable by buttons IR remote & RS232.
  • MIC port can support balance/unbalance signal, suppress the external noise effectively.
  • Line audio output at 3.5mm jack, with volume controllable.
  • Dual-mono function. User can sum up the stereo audio to two times mono audio.
  • MIC mixer function. The microphone will be mixed to the line audio output, and be controlled separately.
  • MIC input supports 48V phantom power, dynamic MIC and wireless MIC.
  • Auto noise gate. It keeps detecting the audio and MIC input, will mute the output when there is no input.
  • Ultra low inrush current, no need for power sequencing. This allows multiple MP-A2B to be powered on simultaneously without overloading power circuits.
  • Convection cooler, fan is not needed.
  • Antistatic case design: providing good protection for long-term and stable performance.
Audio Input Audio Output
Input (2) stereo audio, 1 MIC Output (1) amplifier, (1) stereo audio
Input Connector (2) RCA, (1) 3.5mm jack, (1) pluggable terminal block (3P,3.81mm) Output Connector (1) 3.5mm jack, (1) pluggable terminal block (4P, 5.08mm)
Input
Impedance
>10KΩ Output
Impedance
50Ω/stereo,
4~8Ω/Amplifier
Audio General
Frequency
Response
20Hz ~ 20KHz CMRR >[email protected]~20KHz
SNR 80dB at maximum output Bandwidth 20Hz ~ 25KHz
Stereo
Channel
Separation
>[email protected] to
20KHz
THD + Noise 1%@1KHz,
0.3%@20KHz
at nominal level
Voltage Gain 32dB Power Output 2x20 Watts (4 Ohms)
Control Function
RS232 Control 3-hole phoenix
connector
Panel Control Optional button
control
IR Remote Optional IR remote
