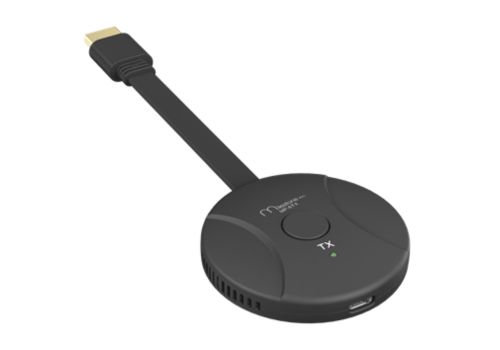

MP-6TX
MP-6TX is an HDMI high-definition signal long distance transmitter, HDMI signal input from the transmitter, receiver output, using 5G frequency band transmission, strong anti-interference ability, more stable, MP-6TX is a high-performance wireless transmission product.
- 5G transmission, anti-interference, more stable, no jamming
- 1080P60Hz high-definition picture quality, simultaneous interpretation of audio and picture
- Support up to 40M wireless transmission
- Support resolution modification, optional 1080P/720P/480P
- Plug and play, no network setup required
- Low latency, within 6m transmission distance, the delay is 50ms
- Supports multiple TX pairs of one RX, switching usage
- Support image rotation, support 90, 270rotation
- The appearance is small and can be carried with the body
Powered by Froala Editor
| Port | 1 HDMI input port |
| Transmission method | 2.4G\5GHz WiFi |
| Resolution ratio | 1080P/60Hz, 720P/60Hz, 480P/60Hz |
| Delay | 6m transmission distance of approximately 30ms |
| Transmission distance | Typical 40m without obstruction |
| Power Supply | DC5V 1A |
| Power Consumption | MP-6TX: 1W (Max) |
| Dimension (W*H*D) | 200mm x 65mm x 15mm |
| Net Weight | MP-6TX: 33.7g |
| Chassis Material | Synthetic Resin |
| Operating Temperature | 0°C to 50°C (32.0 °F to 122.0 °F) |
| Operating Humidity | 10% to 90%, non-condensing |
