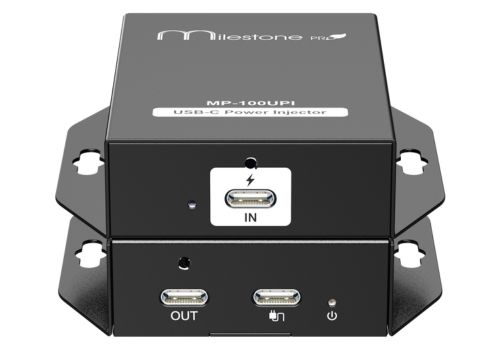

MP-100UPI

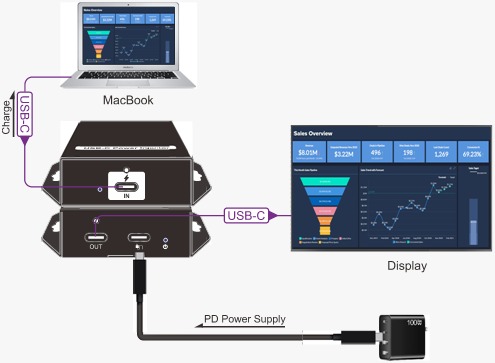

A compact and reliable USB-C power injector designed to deliver stable power to USB-C devices over long cable runs. Features USB-C power input and dual USB-C output ports for seamless integration in AV setups, conferencing systems, and professional installations.
Features
- PD 3.0 w/ 100W injection
- DP alt mode w/ 4K@60Hz 4:4:4 video.
- Up to 10Gb USB3.2 Gen2 data rate.
- Firmware can be upgraded via USB-C.
- USB-C input w/ locking hole
Powered by Froala Editor
Specification
| Input | (1) USB-C |
| Output | (1) USB-C |
| Video | Input: Up to 4K@60Hz 4:4:4 Output: Up to 4K@60Hz 4:4:4 |
| USB | Data Rate: 10 Gbps Device Power: 5V3A |
| PD Standard | PD 3.0 |
Power Consumption | 1W (Exclude USB device load) |
| Dimension | 54(W) x 20(H) x 80(D) mm |
| Net Weight | 130g |
Operation Temperature | -5 ~ +55 °C |
Storage Temperature | -25 ~ +70 °C |
