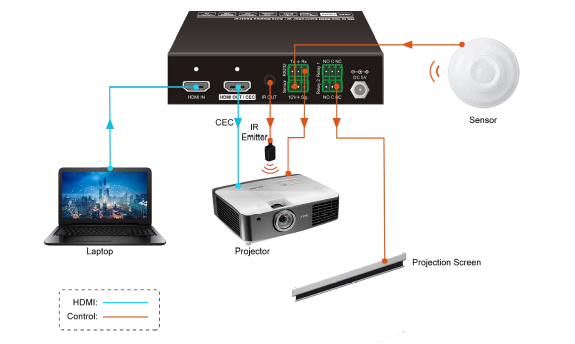

MP-SC-CONTROL 18G In line HDMI Controller, which is designed for automatic system control and HDMI signal extension in small meeting rooms and huddle spaces. It supports three system trigger methods , IR signal, video signal ( 5V or TMDS). It automatically triggers CEC commands, pre-loaded RS232 and IR commands to turn on or off display, and relay control to rise and fall the projection screen. It supports video resolution up to 4K@60Hz 4:4:4 HDR10 and Dolby Vision, and features 4K to 1080P down scaling for compatibility with 1080P display.
- Supports up to 4Kx2K@ 60Hz 4:4:4 HDR10 and Dolby Vision, HDCP 2.2 compliant.
- HDCP pass through or converted to HDCP 1.4 for better compatibility.
- Supports 4K to108 0P down scaling.
- Comprehensive EDID management with 8 EDID Options for various application.
- Automation display control via CEC, RS 232 and IR.
- Contact Closure input for connections with a variety of devices, such as sensor and switch.
- Relay control for device like projection screen.
- Built in signal equalizer, provides capability to use longer range HDMI cable.
| Video Input | |
| Input | (1) HDMI IN |
| Input Connector | (1) Female type-A HDMI |
| Input Video Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| Video Output | |
| Output | (1) HDMI OUT/CEC |
| Output Connector | (1) Female type-A HDMI |
| Output Video Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| Control | |
| Control | (1) SET Button, (1) 4-pin DIP Switch, (1) FW, (1) IR OUT, (1) RS232, (1) Sensor, (2) Relay (1~2) |
| Control Connector | (1) Type-A USB, (1) 3.5mm mini jack, (4) 3-pin terminal blocks |
| General | |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| HDCP Pass through | Supported |
| CEC Control | Supported |
| Hot plug | Supported |
| Bandwidth | 18Gbps |
| HDMI Cable Length | 1080P@60Hz ≤ 33 feet (10 meters), 4K@60Hz ≤ 16 feet (5 meters) |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V 240V AC ; Output: 5V DC 1A |
| Power Consumption | 2.5W(Max) |
| Dimension (W*H*D) | 120mm x 28mm x 84mm |
| Net Weight | 305g |
