MPTP-T70WPT1H-4K

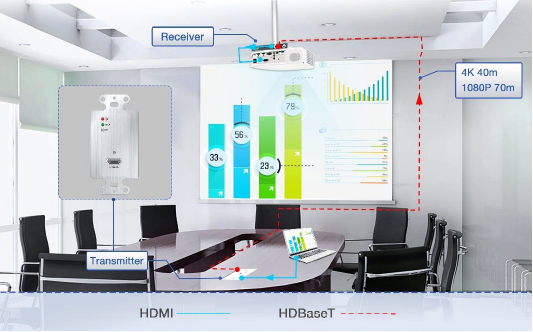

MPTP-T70WPT1H-4K is a HDMI Wallplate Transmitter, which is designed to extend HDMI input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 230ft/70m at 1080P video over a single CATx cable. This Wallplate Transmitter supports CEC, IR and RS232 pass-through. Moreover, 48V PoH allows the transmitter to be powered from a compatible receiver, it also has 12V DC output for powering 3rd party device nearby.
- Supports HDMI signal up to 4K@60Hz 4:2:0 8bit.
- Supports HDMI 1.4 standard and HDCP 2.2 compliant. Ensures display of content-protected media and interoperability with other HDCP compliant devices.
- HDBaseT technology extend HDMI signal 4K up to 131ft/40m and 1080P up to 230ft/70m.
- 10.2Gbps bandwidth.
- Supports RS232 pass-through with HDBaseT connection.
- Supports IR pass-through to extend IR signal to control display device.
- 48V PoH (power over HDBaseT) allows powering from the compatible receiver at the display end.
- Provides 12V DC power supply for other devices.
Powered by Froala Editor
| Input | |
| Input | (1) HDMI |
| Connector | (1) Female type A HDMI |
| HDMI Input Resolution | Up to 4K/UHD@60Hz 4:2:0 8bit |
| Output | |
| Output | (1) HDBT OUT (PoH IN) |
| Connector | (1) RJ45 |
| HDBT Output Resolution | Up to 4K/UHD@60Hz 4:2:0 8bit |
| Control | |
| Control Ports | (1) IR, (1) RS232, (1) IR IN |
| Control Connector | (1) Built-in IR sensor, (1) 3-pin terminal block, (1) 2-pin terminal block |
| Power | |
| Power Ports | (1) 12V DC IN, (1) 12V DC OUT |
| Power Connector | (2) 2-pin terminal blocks |
| General | |
| Bandwidth | 10.2Gbps |
| Transmission Mode | HDBaseT |
| HDMI Version | 1.4 |
| HDCP Version | 2.2 |
| Transmission Distance | 4K≤131ft/40m, 1080p≤230ft/70m |
| Power Supply | Powered from the compatible receiver by CATx cable. |
| Maximum Power Consumption | 9W |
| Opertation Temperature | -5 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 50mm x 103mm x 50mm |
| Net Weight | 180g |
