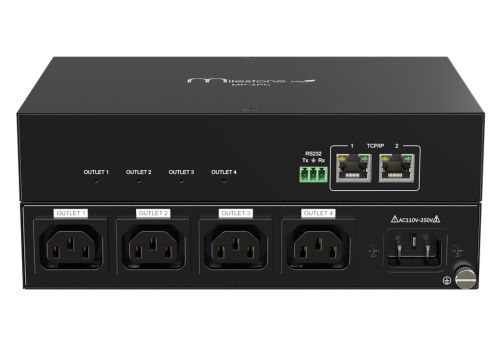

MP-4PC
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till July 2025. In the constant effort to improve the product, we reserve the right to make changes to functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- Switch control, voltage, current, and power consumption metering
- 2x TCP/IP network ports to provide continuous network services
- Overload protection, wiring error protection, and remote login verification
- Supports multiple network protocols and IoT protocols
- Controllable via RS-232 and Web-GUI.
Powered by Froala Editor
Specification
| Voltage | AC 110-250V |
| Frequency | 50/60Hz |
| Current | Max. 10A |
| Connector | 1x IEC C14 |
| Voltage | AC 110-250V |
| Frequency | 50/60Hz |
| Current | Max. 10A per port |
| Connector | 4x IEC C13 |
| Mode | TCP/IP, RS-232 |
| Connector | 2x RJ45, 1x 3-pin phoenix terminal |
| Voltage Range | 110-250V |
| Current Range | 0-10A |
| Frequency Range | 45-65Hz |
| Power Factor | 0-1 |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
