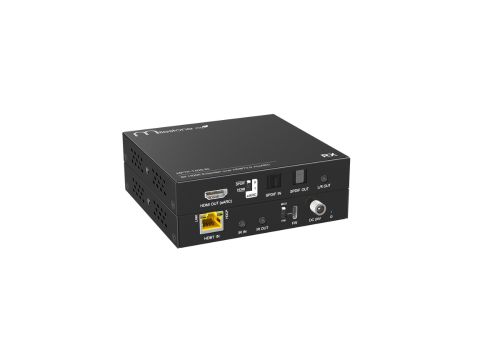

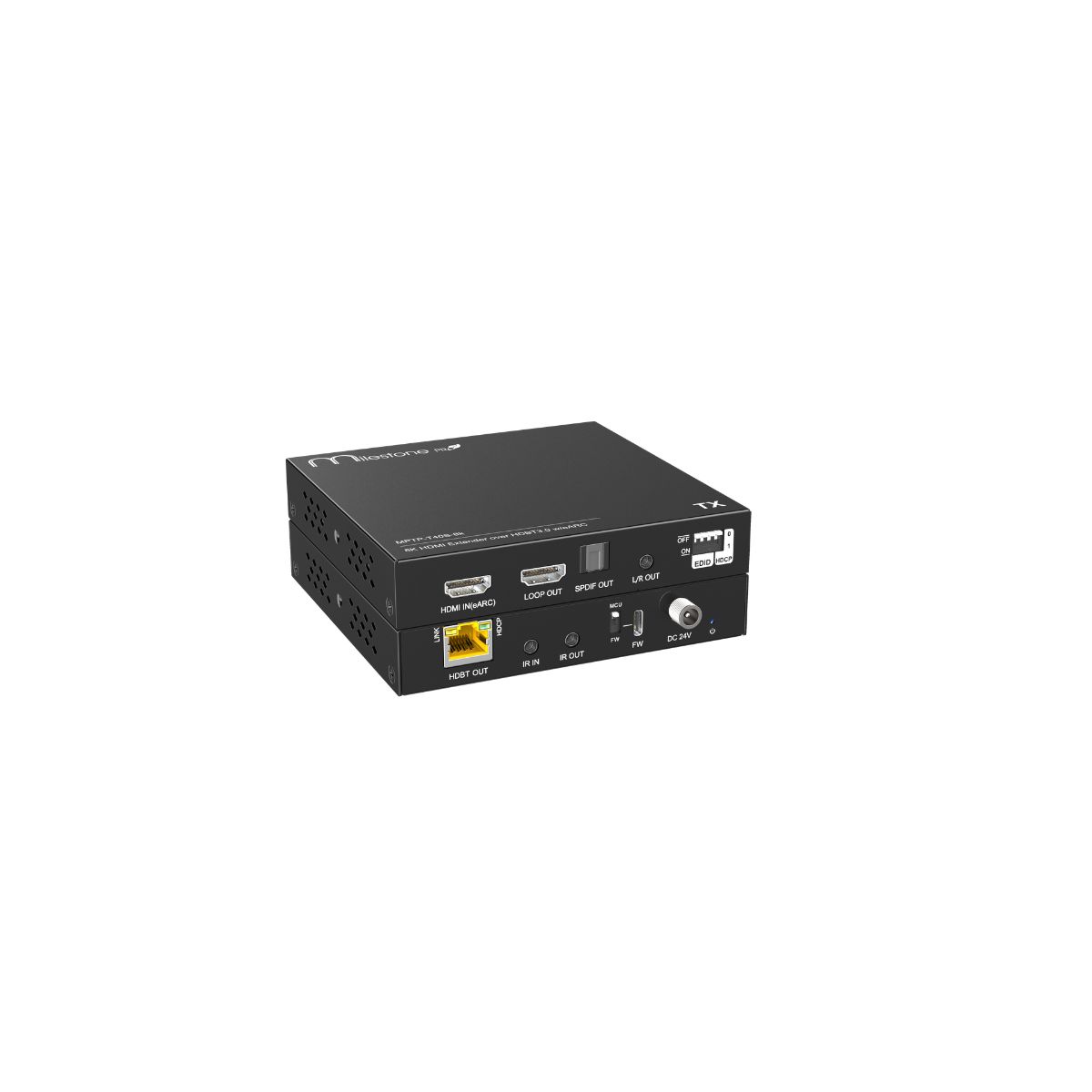

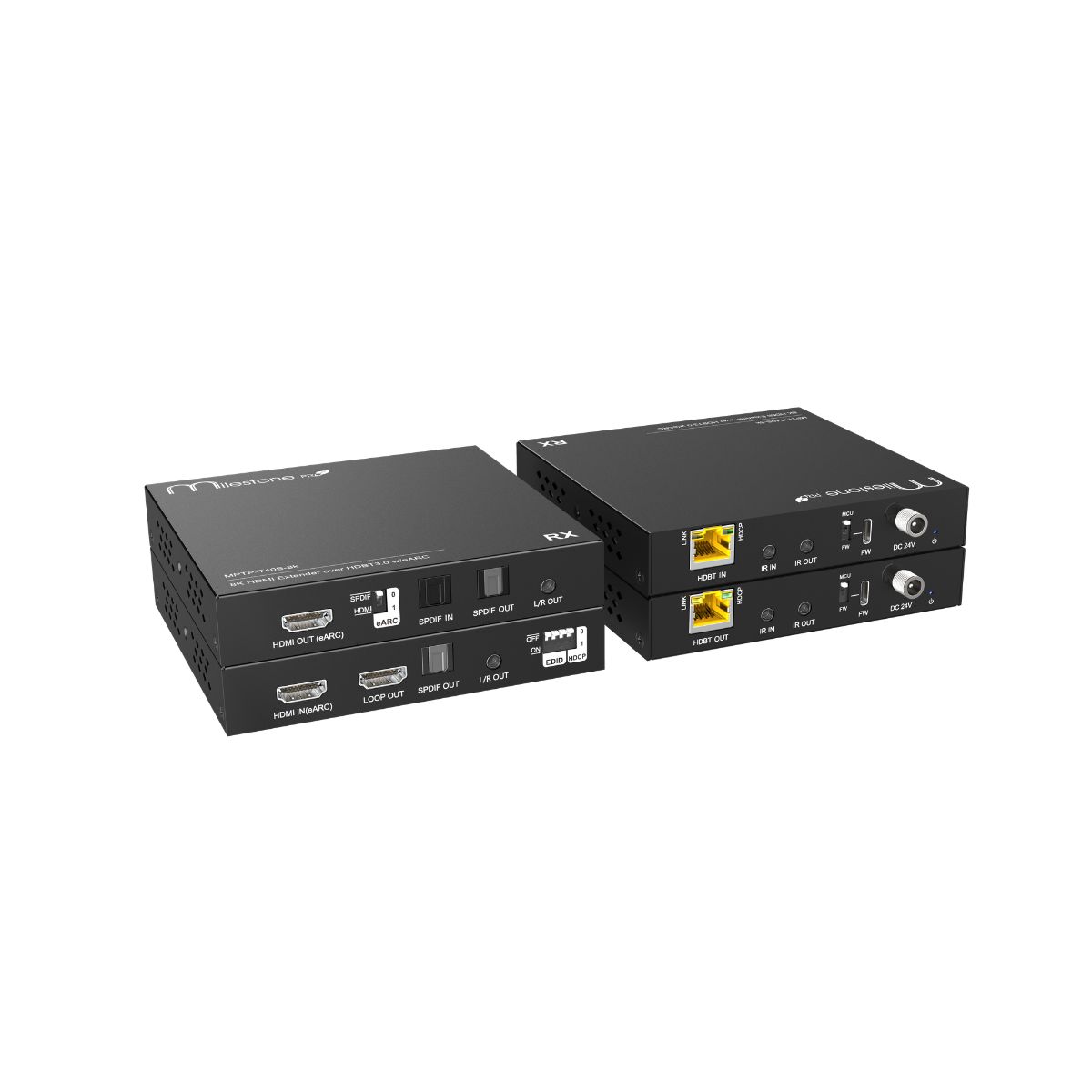

MPTP-T40S-8k
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions; please contact the local distributor for maintenance assistance. The functions described in this version were updated till July 2025. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- 8K/40G HDMI extension at 40m
- Supports eARC from HDMI or SPDIF
- Supports HDMI loop out
- Supports audio de-embedded
- Supports EDID/HDCP management
- Supports two-way IR & PoC.
Powered by Froala Editor
| Input | 1 x HDMI IN | 1 x HDBT IN |
| Input Connector | 1 x HDMI connector | 1 x RJ45 |
| Input Resolution | Support up to 8K@30Hz 4:4:4 10bit or 4K@120Hz 4:4:4 10bit | |
| Output | 1 x HDBT OUT 1 x HDMI LOOP OUT | 1 x HDMI OUT |
| Output Connector | 1 x RJ45 1 x HDMI OUTPUT | 1 x Type-A female HDMI |
| Output | 1 x Digital SPDIF OUTPUT 1 x L/R Analog OUTPUT 1 x HDMI digital OUTPUT | 1 x Digital SPDIF OUTPUT 1 x L/R Analog OUTPUT 1 x HDMI digital OUTPUT |
| Output Connector | 1 x Optical fiber connector 1 x 3.5mm jack female connector 1 x HDMI connector | 1 x Optical fiber connector 1 x 3.5mm jack female connector 1 x HDMI connector |
| Digital SPDIF Audio Format | PCM 2.0, Dolby Digital, DTS, DTS-HD | |
Analog Stereo Audio Format | PCM 2.0 | |
| HDMI Digital Audio Format | All HDMI-supported Audio formats |
