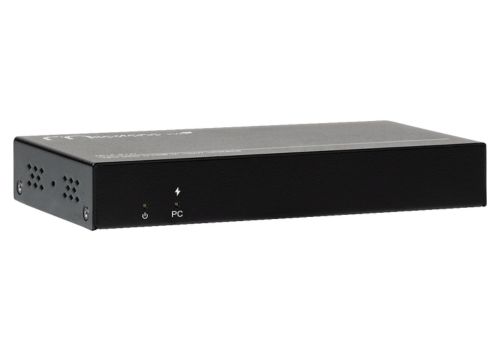

MP-EXT-2
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions; please contact the local distributor for maintenance assistance. The functions described in this version were updated by July 2025. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- Input supports 4K@60Hz 4:4:4.
- Output supports HDMI 2.0, 4K@60Hz 4:4:4.
- HDCP 2.3/2.2/1.x support.
- USB-C input supports 100W USB Power Charging.
- 3x USB 3.2 Gen1 (5Gbps) device ports for USB peripherals such as USB cameras, keyboard, and mouse.
- Each USB device port can deliver up to 5V1A (5W) power.
- Supports auto-switching USB devices downstream.
- Plug and Play.
Powered by Froala Editor
| Input Connector | (1) USB-C |
| Input Resolution | Up to 4K@60Hz 4:4:4 |
| Output Connector | (1) Female type-A HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 (18Gbps) |
| HDMI Standard | 2.0b |
| HDCP Version | 2.3/2.2/1.4 compliant |
| USB Standard | (3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply (1) USB-C: USB 3.2 Gen 1, Display Port Alt mode, 100W PD |
| Operation Temperature | -5 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humility | 10% - 90% |
