MP-HDFB-4K

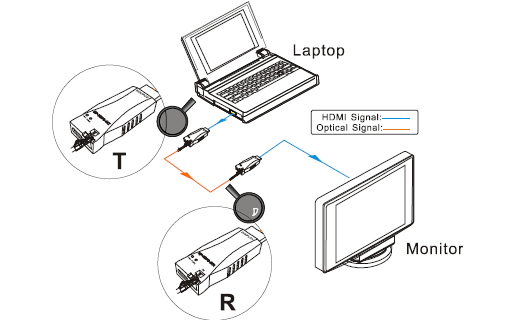

MP-HDFB-4K is a mini optical fiber extender for 4K resolution. It contains a transmitter （MP-HDFB-4KT）and a receiver（MP-HDFB-4KR）. Compatible with multi-mode and single-mode fiber, it extends graphic TMDS signals up to 400m/300m via single-mode cable/ multi-mode cable. With its HDMI1.4& HDCP compliance design, MP-HDFB-4K supports high definition (up to 4096x2160@30Hz, 1080p 3D) signal.
- Integrated with HDBaseT technology.
- 4k up to 300m/400m over OM3 multimode/singlemode fiber-optic cable
- Bandwidth is 10.2Gbps.
- Support HDMI 1.4, , 4Kx2K & 1080p 3D.
- HDCP 1.4 compliant
- Aluminium design for elegant & nice cooling.
Powered by Froala Editor
| MP-HDFB-4KT | MP-HDFB-4KR | |
| Input | ||
| Input Signal | 1 x HDMI | 1 x Optical Fiber |
| Input Connector | 19-pin Type A male HDMI | LC connector |
| Signal | HDMI1.4 | Optical Fiber |
| Output | ||
| Output Signal | 1 Optical Fiber | 1 x HDMI |
| Output Connector | LC connector | 19-pin Type A male HDMI |
| Signal | Optical Fiber | HDMI1.4 |
| General | ||
| Resolution | 4k (max) | |
| Audio Format | PCM, Dolby Digital, DTS, DTS-HD | |
| HDMI Standard | Support HDMI1.4 and HDCP1.4 | |
| Transmission Distance | ≤400m via single-mode fiber ≤300m via multi-mode fiber | |
| Temperature | 0 ~ 50℃ | |
| Reference Humidity | 10% ~ 90% | |
| Power Supply | Input: AC 100~240V, 50/60Hz; Output: DC 5V 1A | |
| Power Consumption | ≤2.5w | ≤2.3w |
| Dimension (W*H*D) | 60x10x22 mm | 60x10x22 mm |
| Weight | 26g | 26g |
