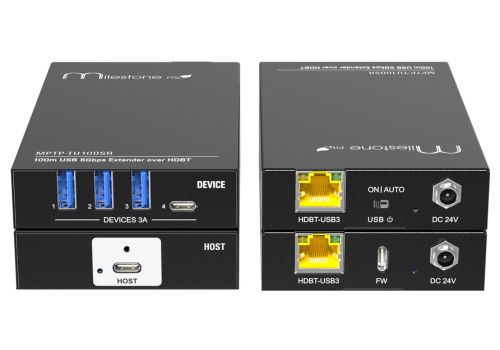

MPTP-TU100S-KIT
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till May 31, 2024. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- USB3.2 Gen1 data transfer rate up to 5Gbps;
- Up to 100m extension over a single CAT6a cable
- Support USB device power management
- Provides up to 3A current for devices
- Two-way 24V PoC power supply
Powered by Froala Editor
Specification
| Host Connector | (1) Type-C USB |
| USB Version | USB 3.2 Gen1 |
| FW Port | (1) Type-C USB |
| Dimension (W*H*D) | 130.0mm x 21.5mm x 75.0mm |
| Net Weight | 240g |
| Devices Connector | (3) Type-A USB (1) Type-C USB |
| Devices Power | Devices share a 3A current limit |
| USB Version | USB 3.2 Gen1 |
| Dimension (W*H*D) | 130.0mm x 21.5mm x 75.0mm |
| Net Weight | 275g |
| Control Connector | (1) 2-pin DIP switch |
| Transmit distance | Up to 100m with CAT6A cable |
| PoC standard | Two-way 24V PoC |
| Data Rate | 5Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
