MP-SC6T-MV

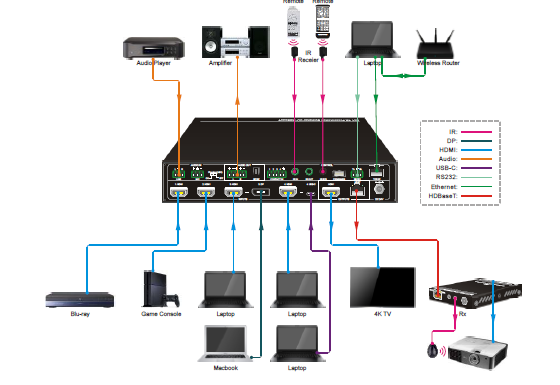

MP-SC6T-MV is the 6x1 4k presentation switcher. It offers four HDMI, one display port and one USB-C inputs along with mirrored HDMI and HDBaseT outputs. The HDBaseT output supports PoC and can be paired with a compatible HDBaseT receiver to extend 4k@30Hz/1080P signal up to 40 meters (131ft) / 70 meters (230ft) all over a single CATx cable. It features external line audio input that can be embedded into any HDMI input, and provides microphone input for audio mixing. It provides multi-view functionality and supports up to 16 multi-mode layouts. It features a wide range of control flexibility via front panel buttons, built-in web GUI, IR remote, RS232 and CEC.
- 6x1 4K Presentation Switcher with HDBaseT output.
- Supports seamless and auto switching.
- HDMI 1.4 and HDCP 2.2 compliant.
- Extends HDMI signals to distance up to 40 meters at 4K and 70 meters at 1080p.
- Supports audio embedded, audio de-embedding and microphone audio mixing.
- Supports multi-view and up to 16 modes can be selected.
- Controllable via front panel buttons, GUI, IR remote, RS232 and CEC.
| Video Input | |
| Input | (4) HDMI IN (1~4), (1) DP, (1) USB-C |
| Video Input Connector | (4) Type-A female HDMI, (1) DisplayPort, (1) Type-C USB |
| Input Resolution | HDMI: Up to 4K@30Hz 4:4:4 |
| DP: Up to 4K@30Hz 4:4:4 | |
| USB-C: Up to 4K@30Hz 4:4:4 | |
| Video Output | |
| Output | (1) HDMI, (1) HDBaseT |
| Video Output Connector | (1) Type-A female HDMI, (1) RJ45 |
| Output Resolution | HDMI: Up to 4K@30Hz 4:4:4 |
| HDBaseT: Up to 4K@30Hz 4:4:4 | |
| HDMI Standard | Up to 1.4 |
| HDCP Version | Up to 2.2 |
| Audio Input | |
| Input | (1) LINE, (1) MIC |
| Audio Input Connector | (2) 3-pin terminal blocks |
| Frequency Response | 20Hz ~ 20kHz, ±3dB |
| Max Input Level | 2.0Vrms ± 0.1 |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Input Impedance | > 10KΩ |
| LINE/MIC Audio Format | PCM 2.0 |
| HDMI/DP Audio Format | PCM 2.0 48K |
| L+R Audio Output | |
| Audio Output | (1) L+R |
| Audio Output Connector | (1) 5-pin terminal block |
| Frequency Response | 20Hz ~ 20kHz, ±1dB |
| Max Output Level | 2.0 ± 0.1Vrms |
| THD+N | < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz ~ 20kHz bandwidth |
| Crosstalk Isolation | < -70dB, 10kHz sine at 0dBFS level |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Noise Level | -80dB |
| SPDIF Audio Output | |
| SPDIF Out | (1) SPDIF |
| Audio Out Connector | (1) Toslink |
| Max Output level | ±0.3dBFS |
| Frequency Response | 20Hz ~ 20kHz, ±1dB |
| THD+N | < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| Signal-to-Noise Ratio | > 90dB, 20Hz ~ 20kHz bandwidth |
| Crosstalk isolation | < -70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| Noise | - 90dB |
| Audio Format | PCM 2.0 |
| Control | |
| Control port | (1) CONTACT IN, (1) IR IN, (1) IR OUT, (1) IR EYE, (1) FIRMWARE, (1) RS232, (1) TCP/IP |
| Control Connector | (1) 5-pin terminal block, (3) 3.5mm jack, (1) Type-A USB, (1) 3-pin terminal block, (1) RJ45 |
| General | |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A |
| Power Consumption | 90w (Max) |
| USB-C Power Charging | 60w (Max) |
| Dimension (W*H*D) | 250mm x 44mm x 200mm |
| Net Weight | 1.6KG |
