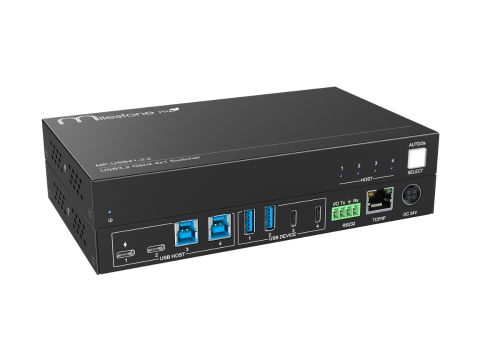

MP-USB41
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till August 19th，2025. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- Support USB 3.2 Gen2, 10Gbps, support switch to 5Gbps
- Support front panel, GUI and RS232, TCP , GPIO control
- USB devices shared 4.5A max current, compatible with most large-power camera
- 100W power support to charge connected host
Powered by Froala Editor
| Host Port | (2)USB-C，(2)USB-B |
| USB Standard | USB 3.2 Gen2 |
| Device Port | (2)USB-A, (2)USB-C |
| USB Standard | USB3.2 Gen2 |
| Control port | (1)RS232, (1)TCP/IP，(1)GPIO |
| Control Connector | (1)4-pin terminal block, (1)RJ45,(1) Buttons |
| Bandwidth | 10 Gbps (support switch to 5Gbps) |
| Operation Temperature | -10 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humility | 10% - 90% |
